Gamdias HELIOS P1A-850G 850W 80 Plus Fully Modular Power Supply

POWERFUL. EFFICIENT. STABLE.

The HELIOS P1A-850G Fully Modular PSU delivers a stable output of up to 90% efficiency and reduces power consumption. It features black flat cables for easy installation and cable management and is equipped with high-quality capacitors and a hydraulic bearing fan to perform reliably at top conditions.

80 PLUS GOLD CERTIFIED

With an 80 PLUS GOLD certification, the unit guarantees stable power output at up to 92% efficiency at 50% load while reducing considerable power consumption

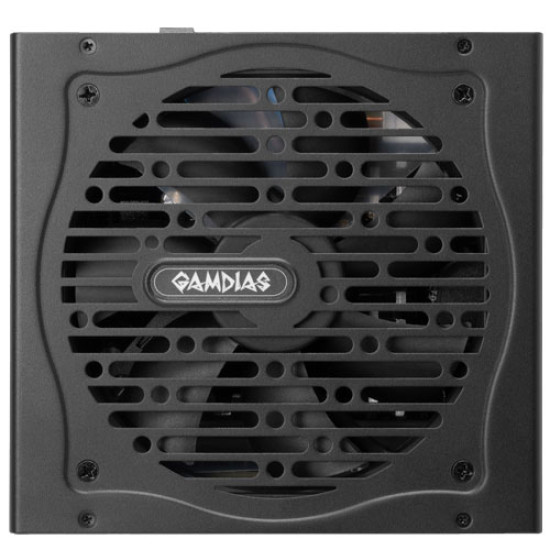

SMART HYDRAULIC FAN

Equipped with a 120mm hydraulic bearing fan, the PSU ensures silent and stable operations for long durations. The fan also features automatic fan speed optimization, enabling the fan speed to be adjusted based on the detection of temperature and load

LLC RESONANT CIRCUIT LAYOUT

Made with DC to DC structure with full bridge LLC resonance assist and 12V synchronous rectification providing a safe and stable output.

FLAT BLACK CABLES

The sleek and flexible black cables are designed for easy cable installation, reducing clutter, and increase the airflow within the case.

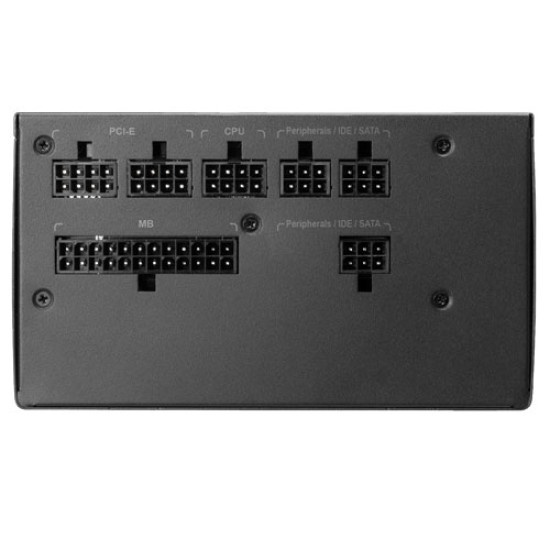

FULLY MODULAR

The HELIOS P1A-850G Fully Modular PSU allows users to connect essential cables for easy installation and offers a larger room for cable management.

HEAVY-DUTY PROTECTION

This PSU offers complete protection, meeting full demands to help the system operate safely and stably.

Specification

Type : ATX12V v2.52

Efficiency : Meet 80 PLUS Gold efficiency

Power Factor Correction : APFC with PF value of 0.99

Support MB Sync ; No

Dimension (L x W x H) : 140 x 150 x 86 mm

Support C6/C7 power state : Yes

AC Input : 100-240V~ / 12-8A / 50-60Hz

DC Output ; +3.3V / +5V / +12V / -12V / +5Vsb

Max. Output Current : 22A / 22A / 70.8A / 0.3A / 3A

Max. Output Power : 120W / 850W / 3.6W / 15W

Total Power : 850W

Peak Power : 1105W

Protection : OVP / UVP / OPP / SCP / OCP / OTP

Main Power  :1 (24 Pin)

CPU : 1 (4+4 Pin)

PCI-E : 4 (6+2 Pin)

SATA : 6 (5 Pin)

Molex : 3 (4 Pin)

Modular : Fully Modular

Flat Cable : Yes

Cooling System : 120mm hydraulic bearing fan

Silent Mode : No

DC to DC : Yes

Environmental Compliance : Erp Lot 6
